76800lm 480W 165lpw High Mast Led Lighting For Tennis Court

Product Categories
BISPARK GROUP LIMITED
Contact Now

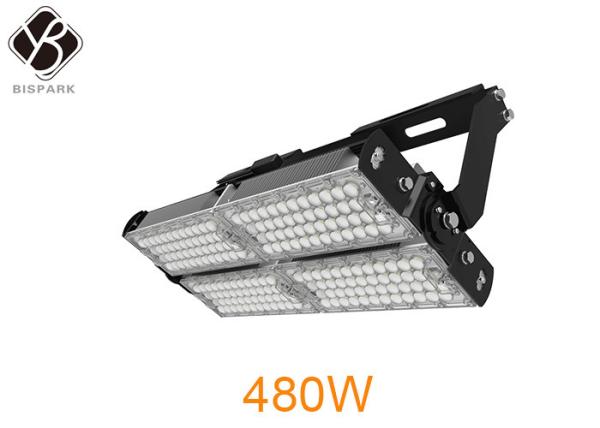

76800lm 480W 165lpw High Mast Led Lighting For Tennis Court

Brand Name : BISPARK

Model Number : GAEA

Certification : CE RoHS SAA UL DLC CB TUV NOM

Place of Origin : Guangdong,China

MOQ : negotiation

Price : 290.6-302.6USD

Payment Terms : T/T, Western Union, D/A, D/P PayPal, MoneyGram

Supply Ability : 20000 PCS per Month

Delivery Time : 7-9 days for 1000pcs

Packaging Details : 1PC/Carton

Material : Extruded Aluminum

Power : 480W

Input Voltage : 90-305V/480V AC

Chip : Lumileds SMD5050

Driver : Meanwell/Inventronics

Beam Angle : 20˚/40˚/60˚/90˚/140*100˚

Operating Temp. : -30-45 ℃

CCT : 2700-6500K

Luminous Efficiency : 165LM/W

IP Rate : IP65

Warranty : 7 Years

Application : Sports Stadiums,Square,Warehouse,baseball/basketball/football/soccer/tennis/hockey rink

Contact Now

HIGH MAST LED LIGHTING 165LPW FOR VOLLEYBALL BADMINTON TENNIS COURT

Product Features & Benefits:
  1. IP65 rated LED floodlighting
  2. Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.
  3. Rotatable modules offering maximum customization
  4. Heavy duty stirrup mounting bracket
  5. Multiple optics available
  6. Application:Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways, transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications, etc.

GAEA series LED High Mast Lights Rotatable Module Fixtures are designed to replace 250W HPS MH to 3000W Metal Halide and HPS high mast lights, it can reduce operational and maintenance costs. Available in 100W/120W/200W/240W/300W/400W/480W/600W/720W/800W/960W/1000W/1200W/1440W.

Item Number NL-GAEA-HM240 GAEA-HM320 GAEA-HM480 GAEA-HM720 GAEA-HM960

GAEA-HM1200/

GAEA-HM1440
Wattage 240W 320W 480W 720W 960W 1200/1440W
Lumen Output 38400lm 51200lm 76800lm 115200lm 153600lm 192000/230400lm
LED Quantity 96PCS 144pcs 192pcs 288pcs 384pcs 480/576pcs
Size(MM) L356*W341.9*H117.6 356*473.9*117.6 650*335.4*117.6 650*467.4*117.6 650*599.4*117.6

667*596.9*133.1/

867*596.9*133.1
LED Chip Lumileds 5050
Luminous Efficacy 160LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle 20° / 40° / 60° / 90° / 140×70°
IP Rating IP65
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty 7 years
Lifespan ＞50,000hrs
Material Extruded Aluminum housing+PC lens

76800lm 480W 165lpw High Mast Led Lighting For Tennis Court

1. Light source/ LED Driver for Volleyball Badminton Tennis Court Football Stadium Reflector Led 480w

76800lm 480W 165lpw High Mast Led Lighting For Tennis Court

2. Rotatable module

Adjustable:
  • Rotatable module
  • Replaceable optical lens
  • Protractor scale for easier aiming
  • Lengthened heavy duty mounting bracket allowing for 360 degree rotation
  • Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other components,these fixtures can withstand corrosive and salt intensive environments.

76800lm 480W 165lpw High Mast Led Lighting For Tennis Court

3. IP Rating
  • Anti-dust design,able to be with flushable cleaning
  • Waterproof IP65:
  • Can't be immersed into the water

76800lm 480W 165lpw High Mast Led Lighting For Tennis Court

4. Easy Installation

76800lm 480W 165lpw High Mast Led Lighting For Tennis Court76800lm 480W 165lpw High Mast Led Lighting For Tennis Court

5. Application

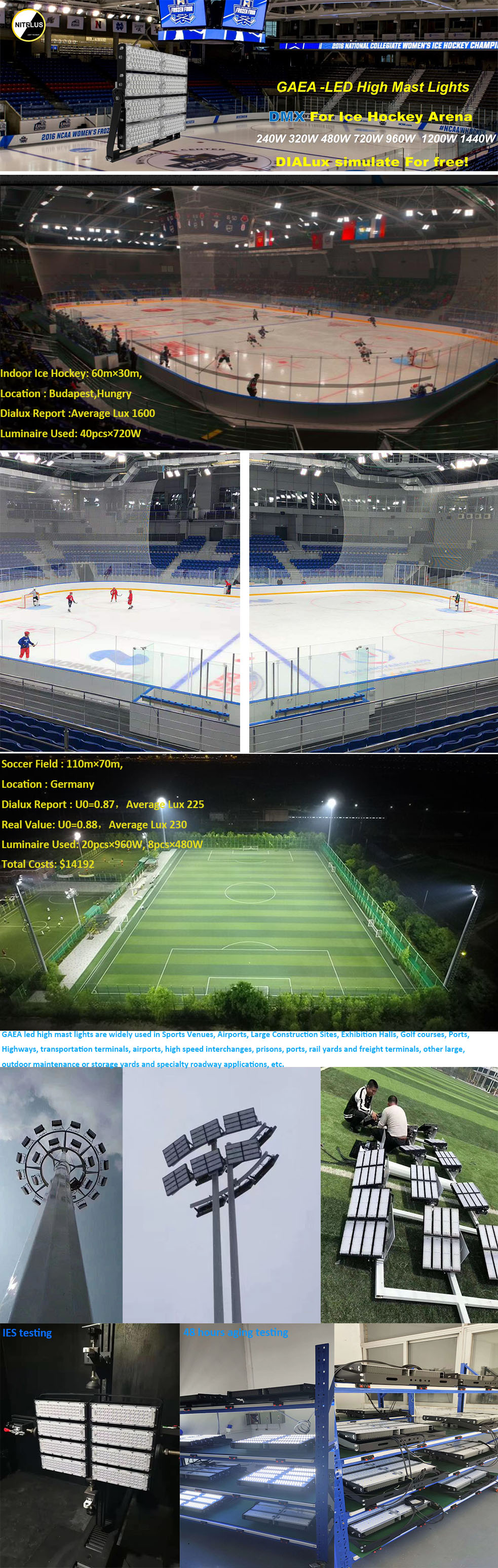

  • LED Outdoor High Mast and Stadium Light produces up to 223,200 Lumens. Based on the Rotatable Module Design, Mean Well Power Supply, Reliable and High Efficiency,Suitable for Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways.
  • The applications for LED high mast lighting where the illumination of extremely large areas such as transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.

76800lm 480W 165lpw High Mast Led Lighting For Tennis Court
