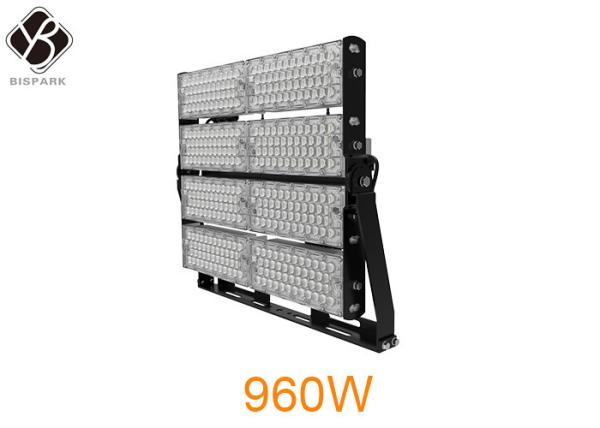

165LM/W 153600lm 960W Outdoor Led Flood Light For Construction Sites

Brand Name : BISPARK

Model Number : GAEA-HM960-A

Certification : CE RoHS SAA UL DLC CB TUV NOM

Place of Origin : Guangdong,China

MOQ : negotiation

Price : 574.6-588.6 USD

Payment Terms : T/T, Western Union, D/A, D/P PayPal, MoneyGram

Supply Ability : 20000 PCS per Month

Delivery Time : 7-9 days for 1000pcs

Packaging Details : 1PC/Carton

Power : 960W 1000W

Input Voltage : 90-305V/480V AC/347V

Chip : Lumileds SMD3030/5050

Driver : Meanwell/Inventronics

Beam Angle : 20˚/40˚/60˚/90˚/140*100˚

Operating Temp. : -30-45 ℃

CCT : 2700-6500K

Luminous Efficiency : 165LM/W

Apllication : Sports area, Stadium Lighting, Ports,etc

Others : OEM/ODM

Contact Now

165LM/W IP66 High Power Led Flood Light

Product Features & Benefits:
  1. IP66 rated LED floodlighting
  2. Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.
  3. Rotatable modules offering maximum customization
  4. Heavy duty stirrup mounting bracket
  5. Multiple optics available
  6. Application:Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways, transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications, etc.

165LM/W IP66 High Power Led Flood Light

GAEA series LED High Mast Lights Rotatable Module Fixtures are designed to replace 250W HPS MH to 3000W Metal Halide and HPS high mast lights, it can reduce operational and maintenance costs. Available in 100W/120W/200W/240W/300W/400W/480W/600W/720W/800W/960W/1000W/1200W/1440W.

Item Number NL-GAEA-HM240 GAEA-HM320 GAEA-HM480 GAEA-HM720 GAEA-HM960

GAEA-HM1200/

GAEA-HM1440
Wattage 240W 320W 480W 720W 960W 1200/1440W
Lumen Output 38400lm 51200lm 76800lm 115200lm 153600lm 192000/230400lm
LED Quantity 96PCS 144pcs 192pcs 288pcs 384pcs 480/576pcs
Size(MM) L356*W341.9*H117.6 356*473.9*117.6 650*335.4*117.6 650*467.4*117.6 650*599.4*117.6

667*596.9*133.1/

867*596.9*133.1
LED Chip Lumileds 5050
Luminous Efficacy 160LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle 20° / 40° / 60° / 90° / 140×70°
IP Rating IP65
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty 7 years
Lifespan ＞50,000hrs
Material Extruded Aluminum housing+PC lens
Modular LED Flood Lights IP66 outdoor projector 165LM/W IP66 High Power Led Flood Light

165LM/W 153600lm 960W Outdoor Led Flood Light For Construction Sites

1. Light source/ LED Driver
165LM/W IP66 High Power Led Flood Light Modular LED Flood Lights IP66 outdoor projector stadium led flood light

High brightness 5050 chip, and Inventronic driver 10KV

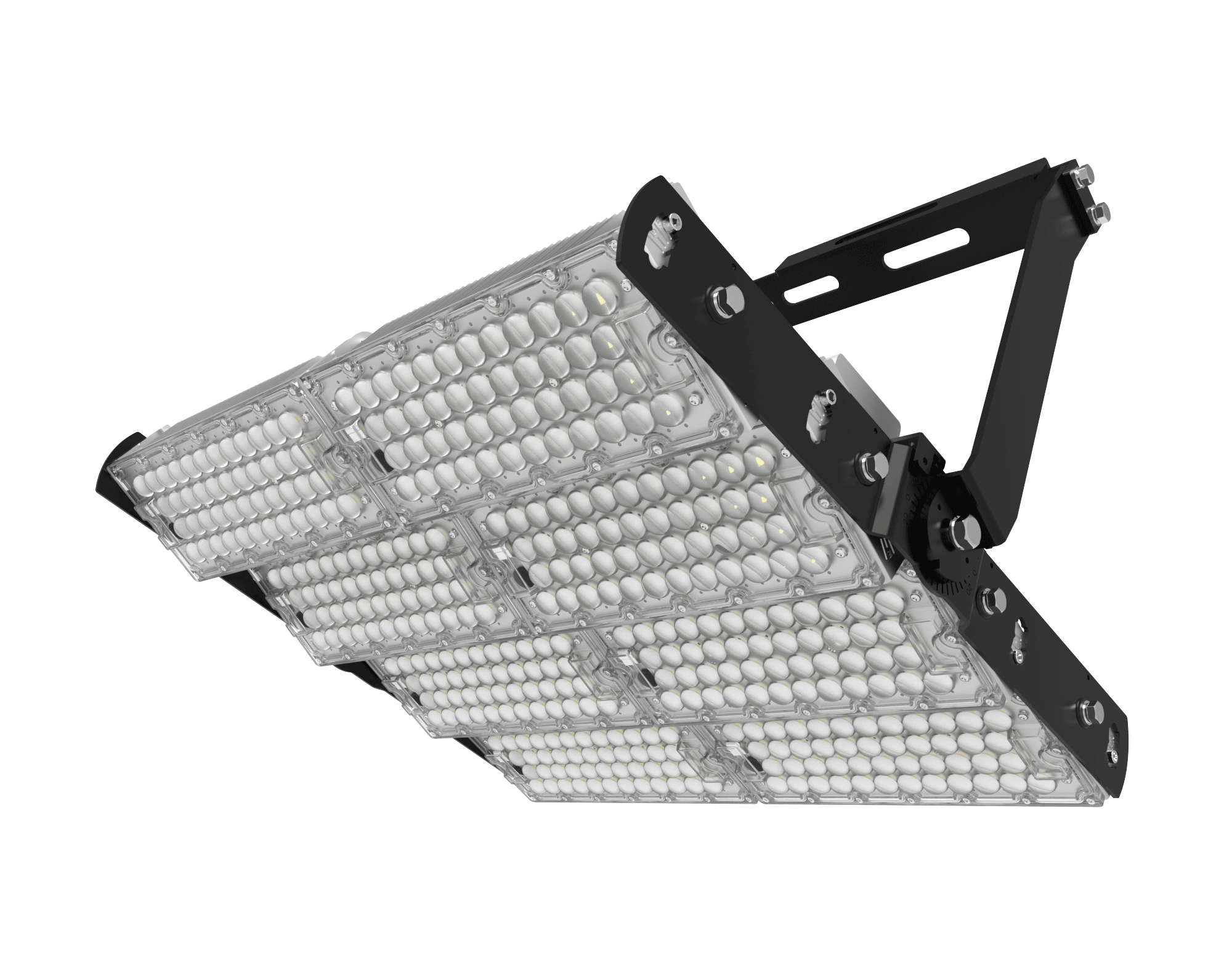

2. Rotatable module

165LM/W IP66 High Power Led Flood Light

Adjustable:
  • Rotatable module
  • Replaceable optical lens
  • Protractor scale for easier aiming
  • Lengthened heavy duty mounting bracket allowing for 360 degree rotation
  • Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other components,these fixtures can withstand corrosive and salt intensive environments.

3. IP Rating
165LM/W IP66 High Power Led Flood Light
  • Waterproof IP66:
    1.Anti-dust design,able to be with flushable cleaning
    2.IP66
    3.Can't be immersed into the water

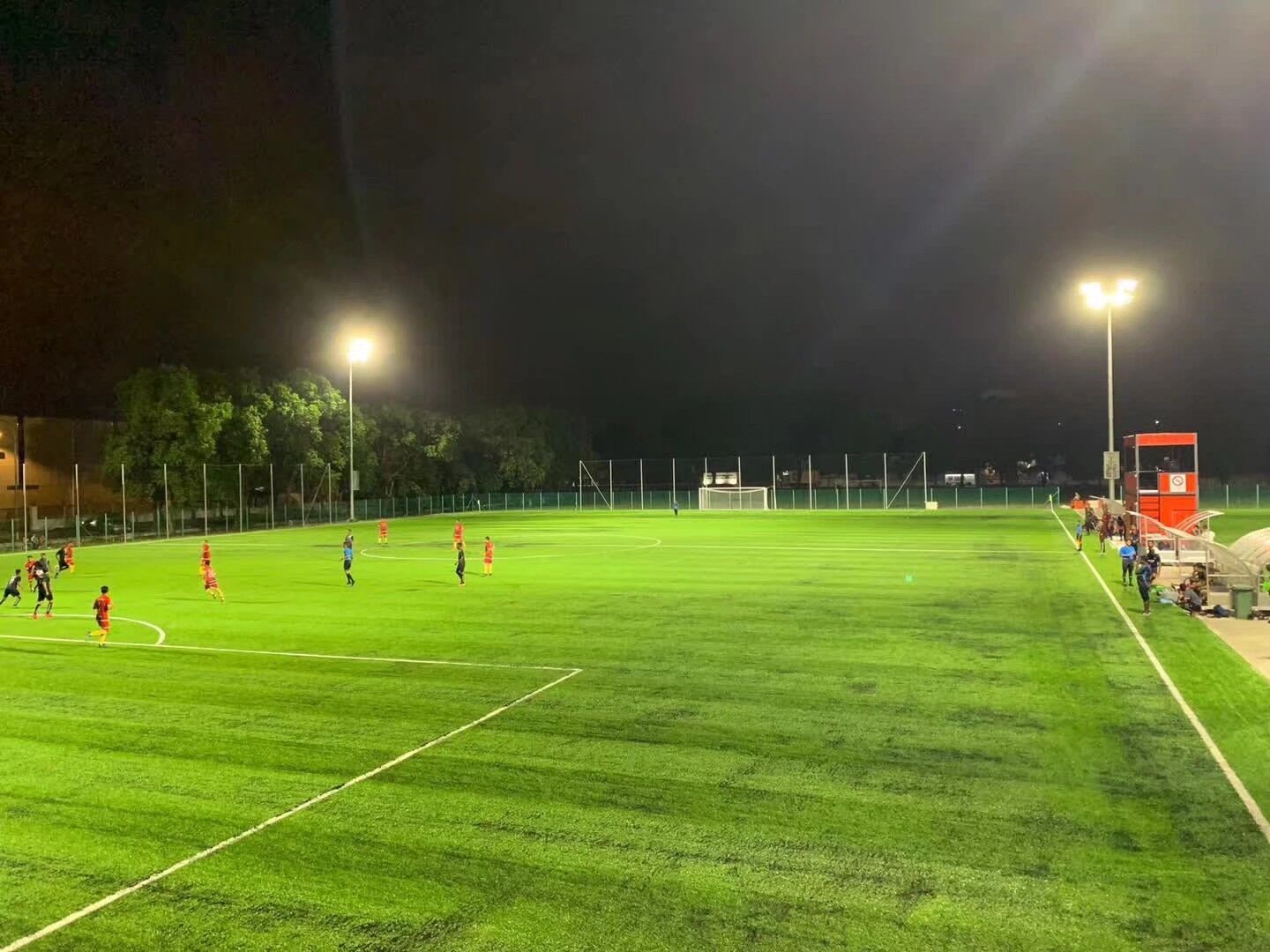

4. Application
  • LED Outdoor High Mast and Stadium Light produces up to 223,200 Lumens. Based on the Rotatable Module Design, Mean Well Power Supply, Reliable and High Efficiency,Suitable for Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways.
  • The applications for LED high mast lighting where the illumination of extremely large areas such as transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.

165LM/W 153600lm 960W Outdoor Led Flood Light For Construction Sites
